Gothic Tracery

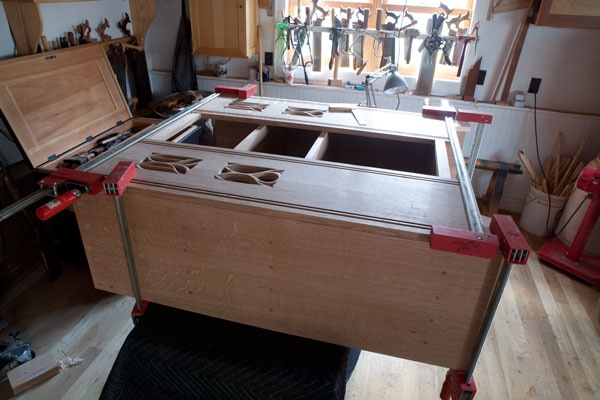

This week I’m finishing up work on an aumbry for a future issue of Popular Woodworking Magazine. More than anything, this project has been about exploring Gothic geometry. But as with any project, I always have a lot of detours and dead ends.

The pierced carvings on the front of the aumbry are fairly simple, yet I was afraid they would be off-putting for some beginning woodworkers. So I started investigating the amazing geometrical world of Gothic tracery. With a compass and a straightedge, you can draw almost anything in the Gothic lexicon.

I went a bit nuts with it for a couple days.

Gothic Tracery gothic_constructions2

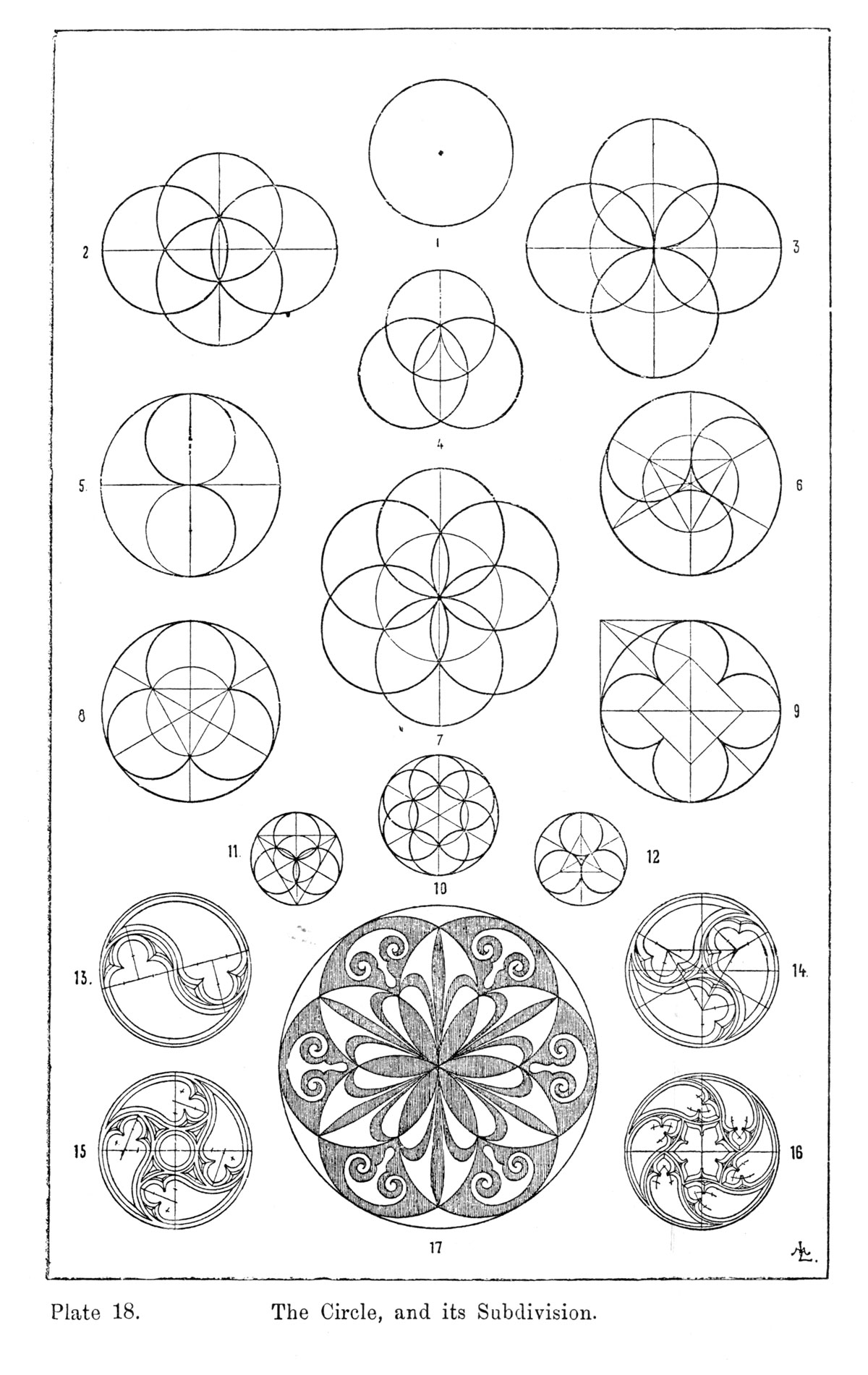

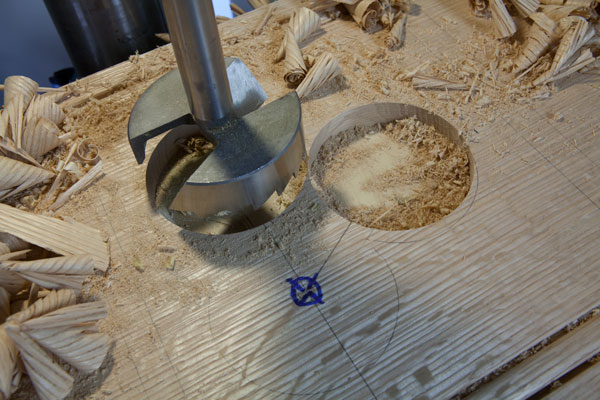

If you study the plates included with this entry, you can see how almost all of the Gothic forms flow from a square, circle or equilateral triangle. After drawing out several dozen lancet arches (easy), I decided to put a pierced form in the center of the door that is based on a triangle. You first draw the equilateral triangle on the work. Then you drill a hole at each vertex that has a diameter equal to each segment of the triangle.

(In English: drill a hole at each corner of the triangle. The bit’s diameter should be equal to the length of one of the legs of the triangle.)

tracery1_forstner_IMG_9225

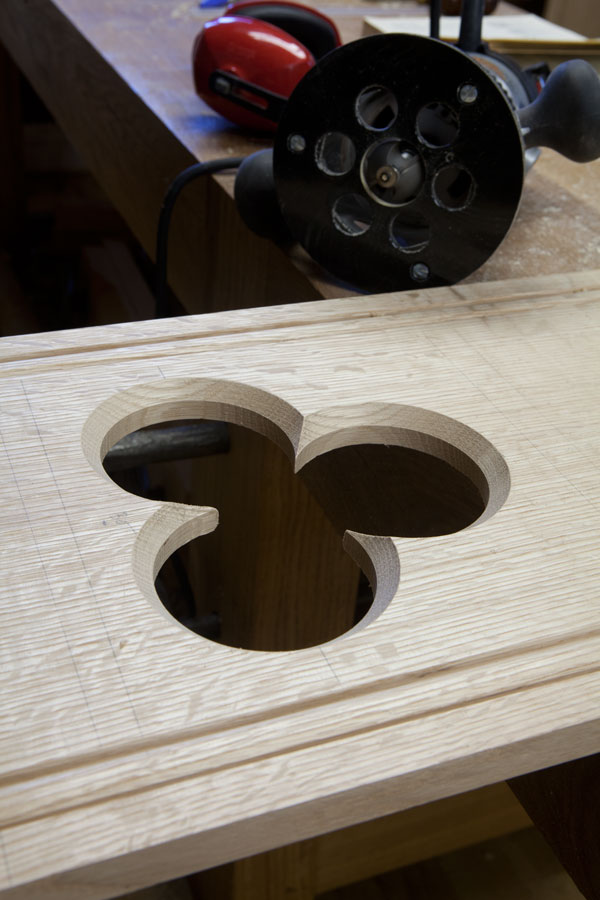

The three holes end up tangent to one another – and a middle triangular section of waste falls away. Then you can shape the edges of the piercing with a router. I experimented with a bunch of bits to try to create different effects. The best was a small chamfer, which I guided with a bearing on the rim of the piercing.

tracery2_router_IMG_9230

After making a few test pieces, I made the piercing in the finished door of the aumbry. I took a step back and said to myself: It looks like a gambler’s door. The piercing looked too much like the suite of “clubs” in playing cards.

So I set the door aside and made all the pierced carvings the hard (but fun) way. With a chisel and rasp.

— Christopher Schwarz
